Article number: BN322

TFX POWER 3

300W Bronze

Buy online

Add to comparison

PSU calculator

Support

Further models

TFX POWER 3

300W Bronze

COMPACT AND SILENT ENERGY

TFX Power 3 300W Bronze: the upgraded be quiet! PSU for mini and media PCs with 80 PLUS^® Bronze certification and PCIe graphics card support.

Certified 80 PLUS® Bronze efficiency (up to 88.3%)
Strong 12V-rail and PCIe graphics support
300W of continuous power
One PCI express connector for GPU card support
High-quality temperature-controlled 80mm fan for low-noise operation of max. 29.1dB(A)
Sleeved or flat black cables up to 60cm long
Meets the latest safety and efficiency requirements
Standby draw less than 0.14 watts
Three-year manufacturer’s warranty
Product conception, design and quality control in Germany

Characteristics

80 PLUS^® BRONZE CERTIFICATION

Efficient operation

The 80 PLUS Bronze certification of TFX Power 3 300W Bronze with an efficiency rating of up to 88.3% is convincing evidence of this PSU’s power saving operation.

STRONG SINGLE 12V RAIL

For maximum power

The 12V rail design supports high stability as the CPU receives its power through an independent rail. For demanding peripherals like a graphics card, a PCIe connector is included. This makes the TFX Power 3 300W Bronze the ideal PSU for all who strive for enough power to support small systems at low noise.

QUIET AND SAFE

Optimized for low-noise operation

The temperature-controlled fan ensures a quiet operation and produces little wasted heat. Since TFX Power 3 300W Bronze meets the latest safety requirements, it defends the PC system against overcurrents, over- and undervoltage, short circuit, overloads and comparable failures.

All models at a glance:

Product Series

General data

Model	TFX Power 3 300W Bronze
Continuous power (W)	300
Peak power (W)	350
Form factor	TFX12V Version 2.52
Form factor EPS 12V	Version 2.92
Modular Cable management	-
Topology	-
Wire-free design (DC-side)	-
Voltage (Vac)	100 - 240
Frequency (Hz)	50 - 60
Input current (A)	4 / 1.5
PFC	active
Power factor at 100% load	>0.96
Compliant to Intel C6/C7	✓
Power consumption in standby (W)	<0.14
Average life time (h / 25°C)	100,000
Operating temperature up to (°C)	40

Infographics

open all / close all

						Output

									12V rails (multi-rail operation)-

									12V single rail operation✓

									Overclocking key-

									+3.3V (A)16

									+5V (A)16

									+12V1 (A)25

									+12V2 (A)-

									+12V3 (A)-

									+12V4 (A)-

									+12V5 (A)-

									+12V6 (A)-

									-12V (A)0.3

									+5Vsb (A)2.5

									Max. combined power 12V (W)300

									Max. combined power 3.3V + 5V (W)85

									Hold-up time at 100% load (ms)22 (@80%)

									Power good signal100 - 150ms

						Fan / Cooling technology

									Fan typeHigh quality fan

									+SilentWings-

									Motor technology4-pole fan motor

									Bearing technologyRifle

									Fan size (mm)80

									Max. fan speed (rpm), temperature-dependent1859

									Temperature control for case fans-

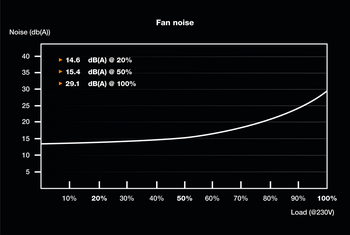

									dB(A) at 20% load14.6

									dB(A) at 50% load15.4

									dB(A) at 100% load29.1

						Protection

									OCP (over current protection)✓

									OVP (over Voltage protection)✓

									UVP (under Voltage protection)✓

									SCP (short circuit protection)✓

									OTP (over temperature protection)-

									OPP (over power protection)✓

									SIP (Surge & Inrush Protection)✓

						Safety certification

									CE✓

									CB✓

									TÜV✓

									FCC-

									cRUus-

									cTUVus-

									RCM (Australia)-

									BSMI-

									CU (Russia)✓

									CCC-

						Eco / Efficiency

									80 PLUS certificationBronze

									Efficiency (%) at 230V, 20% load84

									Efficiency (%) at 230V, 50% load88.3

									Efficiency (%) at 230V, 100% load86.4

						Environmental directives

									Energy Star8.0

									ErP✓

									WEEE✓

									RoHs✓

						Cables / Connectors

									Nvidia® SLI (RTX 3090) ready-

									Cable managementFixed

									Sleeved cablesSleeved cables

									Flat cablesP8 / PCIe / drives

									Cable length to mainboard (cm)35

									Cable length to first connector (cm)30

									Maximum cable length (cm)60

									All-in-one cable (SATA/PATA/FDD)-

									No. of cables5

									ATX-Motherboard (20+4-pin)1

									P8 (CPU)-

									P4+4 (CPU)-

									P4 (CPU)1

									PCI-e 6-pin (GPU)-

									PCI-e 6+2-pin (GPU)1

									PATA2

									SATA3

									FDD (Floppy)1

									External fan connectors-

						Casing

									Dimensions without cable (L x W x D), (mm)175 x 85 x 65

									Weight (kg)0.9

									ColorBlack

						Accessories

									Thumb screws-

									Screws✓

									Cable ties✓

									Velcro cable ties-

									Box/Bag for PSU/Cables-

									User manual languagesDE, EN, ES, FR, PL, RU

									OCK slot bracket with switch / OCK jumper-

									SFX-to-ATX adapter bracket-

						Service

									Warranty (Years)3

									Express replacement service in first year-

									International hotline / free of charge✓ / DE, FR

						Logistics data, RRP

									Article numberBN322

									EAN code4260052188286

									Dimensions, package (L x W x H), (mm)80 x 159 x 215

									Gross weight, package (kg)1.24

									Pieces per packaging unit6

									Dimensions, shipping box (L x W x H), (mm)474 x 275 x 195

									Gross weight, shipping box (kg)8.25

									RRP (€)57.90
